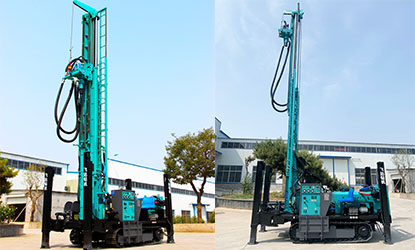

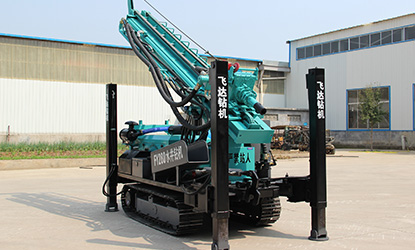

FY280 DTH water well drilling machine

OVERVIEW：

This FY280 water well drilling machine drill 280m depth, 140-305mm diameter. it works both air and mud.
Price: 21,000-36,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. It can drill 20-30m depth in solid rock layer when use air drilling.
2. One time push is 6m max, save working time and labor cost.
3. Adopting double cylinder to lifting, lifting force can reach 17 tons;

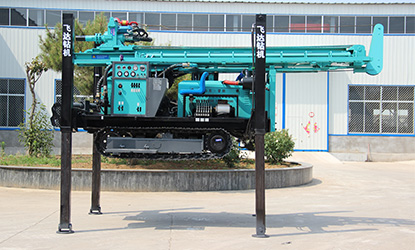

4. The four strong legs can lift 1.7meters, and the real ground clearance can reach 1.45 meters, easy to load and unload the drilling rig from a truck.
5. Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost

TECHNICAL DATA

SPECIFICATON OF DRILLING RIG
>Weight	>6500 kg
Drilling Diameter	140-305mm
Drilling Depth	280m
Drilling Efficiency	20-30m/h
Rotation Speed	45-70-130rpm
Rotation Torque	3700-5000N.M
Winch Capacity	2.0 Ton
Lifting Capacity	17 Ton
Lifting Speed	8-35m/min
Lowering Speed	6-19m/min
Reverse Thrust Capacity	7 Ton
Engine Power	70kw
>Engine Brand	>Yuchai
>Air Consumption	>17-30 m³/min
>Working Pressure	>1.7-3.0 Mpa
>One Time Push Lengh	>6m
>Diameter of Drilling Rod	>76mm/89mm
>Length of Drilling Rod	>1.5/2.0/3.0m
>Driving Speed	>2.5km/h
>Climbing Angle	align="right">30
rowspan="2">Measurement	rowspan="2">590017502450mm
