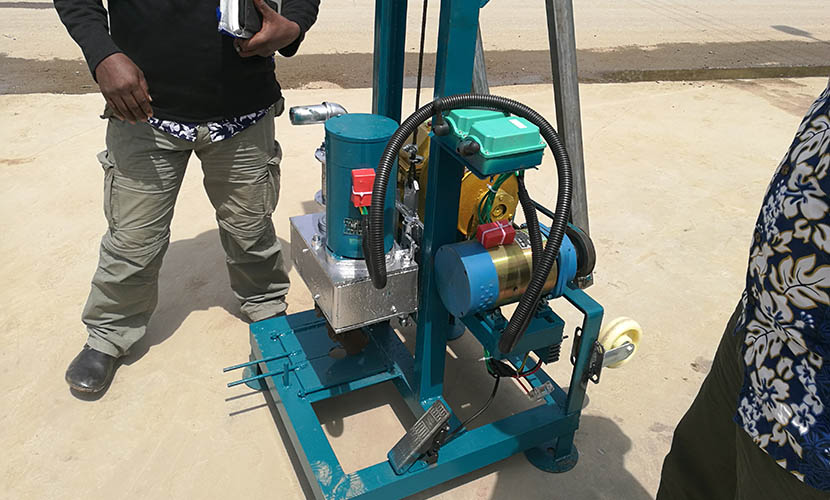

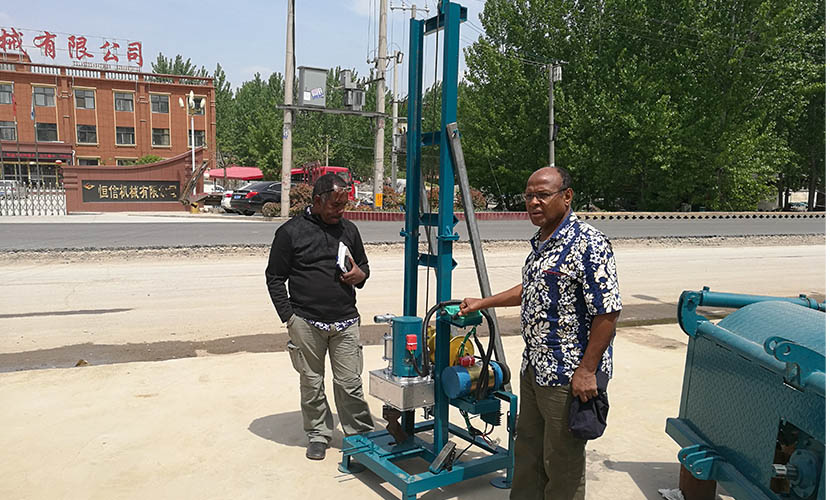

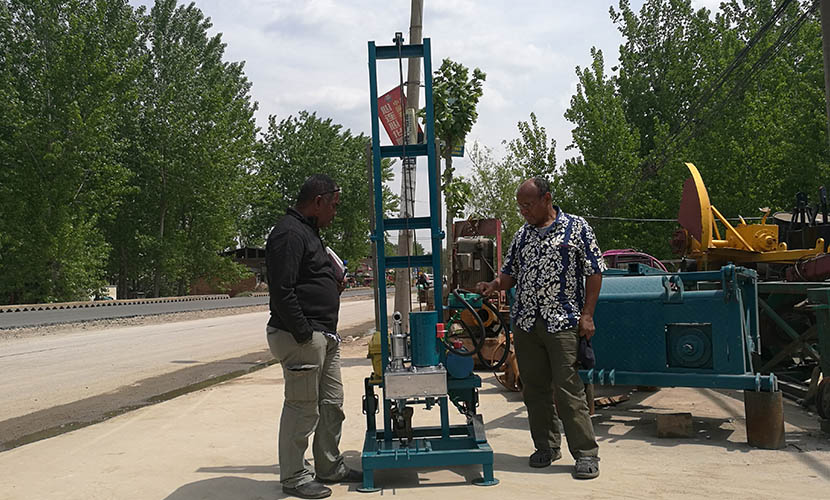

Electric AKL-150P small water well drilling machine

1. New updated 2.5kw drilling motor, 60V DC electric motor,it is a motor come from three wheels electric car, very powerful, quality steady and won't burn out like normal 220V electric motor. Use 220V, 50HZ single phase voltage.

2. Gearbox is very important for drilling rig, so we pay much attention on it. after many test,  it is designed with simple strong sturcture, long working life, almost no need maintain, only replace lubricating grease regularly. If in worst case, only replace some gear wheels inside the gearbox will be OK

3. Control box is with four buttons, up/down for hoist, forward/reverse for drilling motor. you can take them in hand to operate. These make drilling easy.

4. Rotary water swivelprovide enough mud from mud pit to make the drilling more efficient. with wear-resistant shaft and bearing inside it to help it keep a longer working time, since water swivel is qucik wear out part. if bad quality, it will be leaky easily.

5. Strond structure compared with similar type in market, Every driller know that the drilling rig will shake when hit some hard formation underground, if structure is weak and not weld strong, the frame will crack easily. Someone told me they bought similar type from a reseller who provide similar copied model, the structure crack first time he use. really bad.

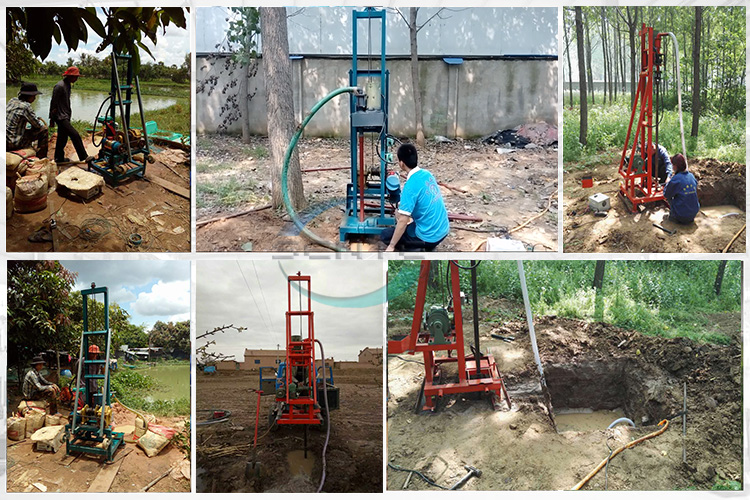

6.Two wheels to help it move to working site. also the whole unit could be disassembled，then two worker can take it to truck or only a pick car. save much money to find a forklift and crane truck.

7. Work well in soft formation, with PDC rock drilling bit, it can break through some soft rocks, however, it will be slowly,

YouTube Video Link: https://www.youtube.com/watch?v=EKVnx2uwL5M
