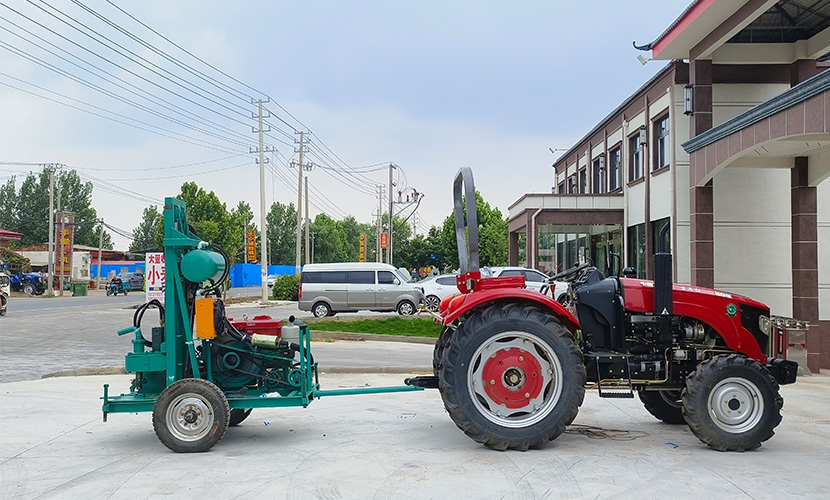

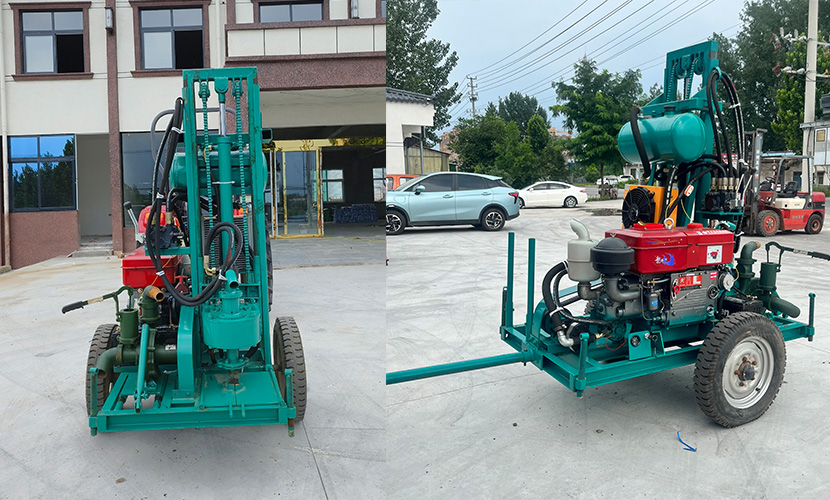

Top drive AKL-150Y diesel engine drilling rig

OVERVIEW：

This AKL-150Y top drive diesel engine drilling rig can drill max 120m depth, diameter ranges from 75mm-300mm
Price: 2000USD-3800USD.

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

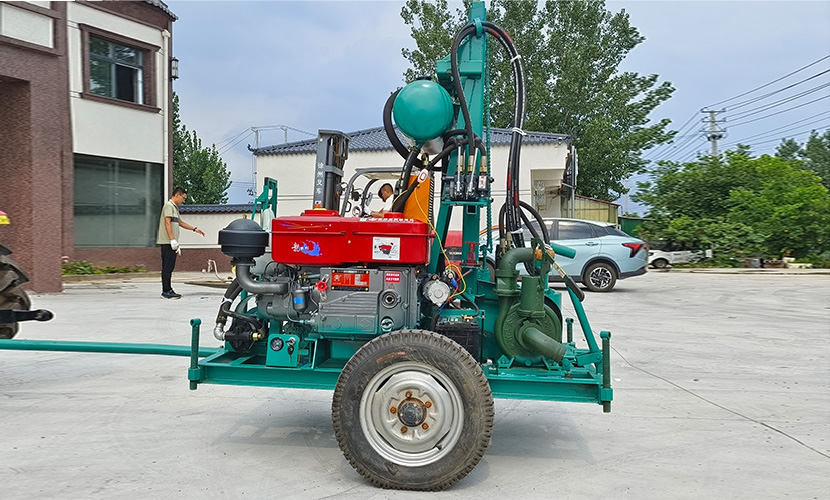

1. Hydraulic motor type run by diesel engine, hydraulic lifting powered by diesel engine, too. In this way, no need electricty, It can work in area there is no electricty power.
2. Small size, with wheels trailer, two man could move it easily.
3. 22HP diesel engine, it is OK to use some electric motor, too.
4. Mainly used for small water well, with PDC drilling bit,it can break through some rocks, too.
5. It is a nice choice for you to start your first drilling business.
Online Video: https://www.youtube.com/watch?v=uRxAaZeXRLE

TECHNICAL DATA

Technical Parameters of AKL-150Y
Type	AKL-150Y
Max. Drilling Diameter	300mm
Max. Drilling Depth	120m
Diesel Engine	22HP
Capacity of hoist	2T
Height of tower	2.5m
Measurement	1600mm900mm2000mm
Total Weight	800kgs
Drilling Rod Length	1.5m/piece
Diameter of Drilling Rod	51mm
