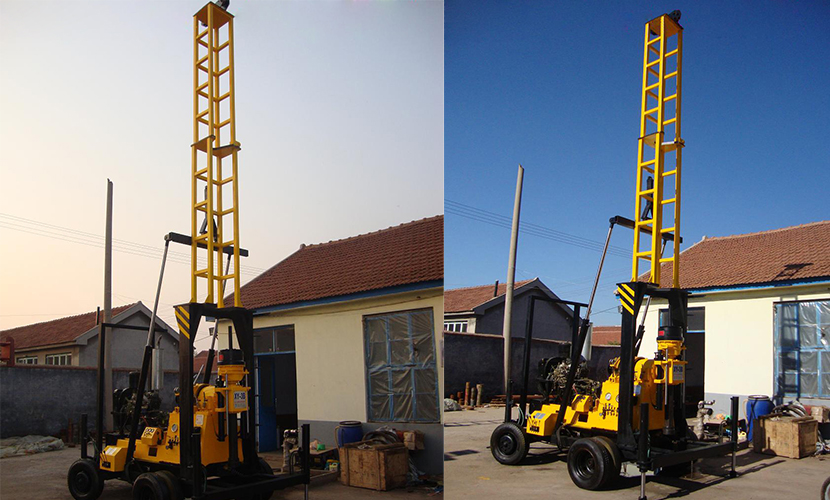

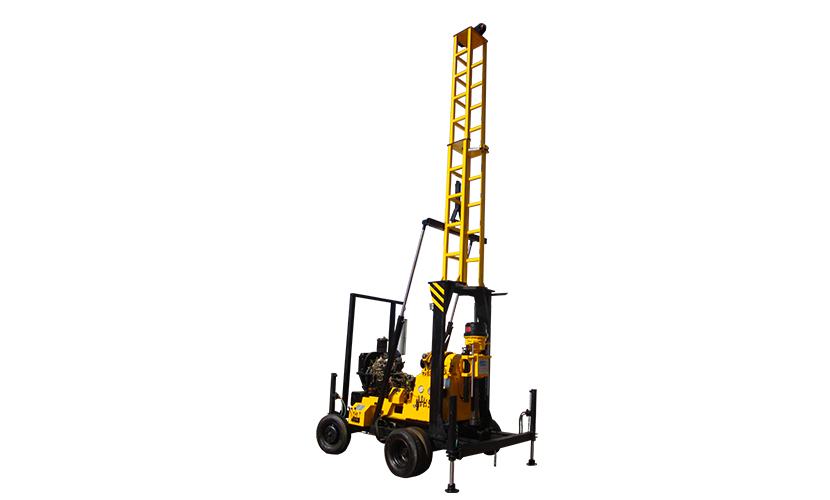

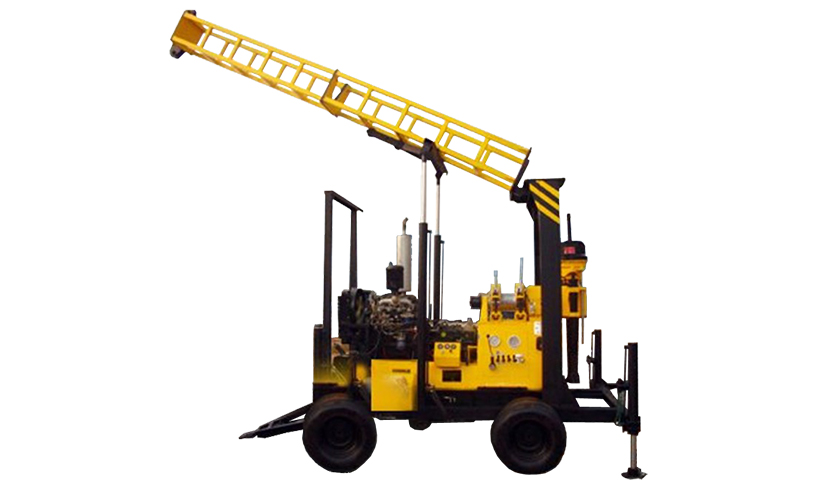

600m depth AKL-600C drilling rig

OVERVIEW：

FEATURES

1. Designed for mining,core sample drilling, max 600m depth. Also could be used for water wells, too

2. Suitable for different hardness of geological features;

3. Strong structure and scientific design enable them to drill water well deep and with large diameter;

4. Durable parts, long service life;

5. Four tyres in the bottom: so it can be moved easily to any working place;

6. Can be customized with crawler system or trailer type.

TECHNICAL DATA

Drilling depth	m	60			80	150	210	300	400	500	600
Drilling DI	mm	600			500	273	219	159	127	108	75
Open hole DI	mm	600
End hole DI	mm	75
Drilling rod	mm	Φ42, Φ50, Φ60, Φ76
Drilling angle		90°-65°
Rotary Spindle
Spindle forward speed				r/min			30-1050
Spindle reverse speed				r/min			29-137
Spindle stroke				mm			560
Spindle inner diameter				mm			96
Spindle lifting capacity				kg			6000
Spindle Max. Torque				N.m			3800
Main Winch ( drive hydraulic system)
Single line lifting speed				m/s			0.5-1.9
Tightrope diameter				mm			12.5
Hoist single line lifting capacity				kg			4000
Roller diameter				mm			300
Roller cubic measure				m			50
Single line lifting capacity				kg			3000
Auxiliary Winch
Roller diameter				mm			140
Tightrope diameter				mm			6
Roller cubic measure				m			450
Mud pump (Optional)
Horizontal Triplex BW-200II mud pump
Displacement			L/min				200
Work pressure			Mpa				5MPa/50kg/cm2
Water inlet caliber			mm				65
Water to exit caliber			mm				38
Drilling rig Power
Diesel engine			KW				4100 38kw (90PS)
Electric motor			KW				Y180L—4B35 22KW
Six-wheel Trailer
Travel speed			Km/hr				25
Frame carrying capacity			ton				4
Steering wheel 600-14			ton				0.75
Loading wheel 650-15			ton				0.9
Min. turning			m				6.8
Drilling rig Measure
Unit weight			kg				2880
Dimension			mm				370018503200
